CHANGEOVER SWITCH AEG 3 POSITIONS 1CO 16A 250VAC

ASTSZ161

DEVIATORE AEG A 3 POSIZIONI CORRENTE NOMINALE 16A O,5 MODUL1, 1 CONTATTO CO, TENSIONE NOMINALE 250VAC, CON MANOVRA SIGILLABILE IN ON E OFF

+

CHANGEOVER SWITCH AEG 3 POSITIONS 1CO 16A 250VAC

Downloads and Resources

Download informative and technical materials to learn more about the features of our products.

Click here for download: Product data sheet

Product data sheet

Click here for download: Dimensioned drawing

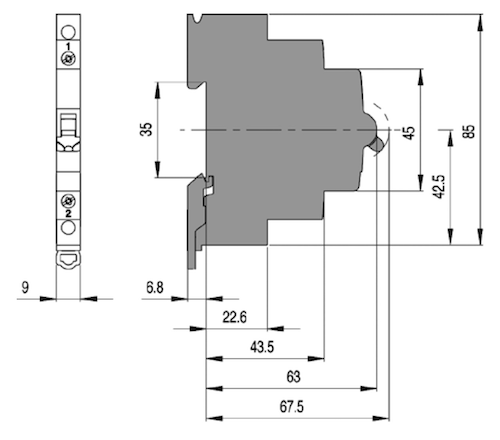

Dimensioned drawing

Click here for download: Product picture view from the left side

Product picture view from the left side

Click here for download: Product picture view from the right side

Product picture view from the right side

Click here for download: Declaration DOC CE (Declaration of conformity CE)

Declaration DOC CE (Declaration of conformity CE)

Click here for download: Deeplink REACH

Deeplink REACH

Technical Specifications

Type

Changeover Switch with 0 position

Rated Current (A)

16 A

Contacts

1CO

Number of modules

0,5

Rated Voltage AC

250 V

Frequency

50/60 Hz

Power loss

0,32 W

Working temperature

-25/+55 °C

Storage temperature

-40/+70 °C

Protection Degree on terminals

IP20

Standard connection terminals

1 or 2 x 0,75...2,5 mm²

Torque

1,5 Nm

Brand

AEG
