CHANGEOVER SWITCH AEG 2 POSITIONS 2CO 25A 250VAC

ASTS252

DEVIATORE AEG A 2 POSIZIONI CORRENTE NOMINALE 25A 1 MODULO, 2 CONTATTO CO, TENSIONE NOMINALE 250VAC, CON MANOVRA SIGILLABILE IN ON E OFF

+

CHANGEOVER SWITCH AEG 2 POSITIONS 2CO 25A 250VAC

Downloads and Resources

Download informative and technical materials to learn more about the features of our products.

Click here for download: Product data sheet

Product data sheet

Click here for download: Dimensioned drawing

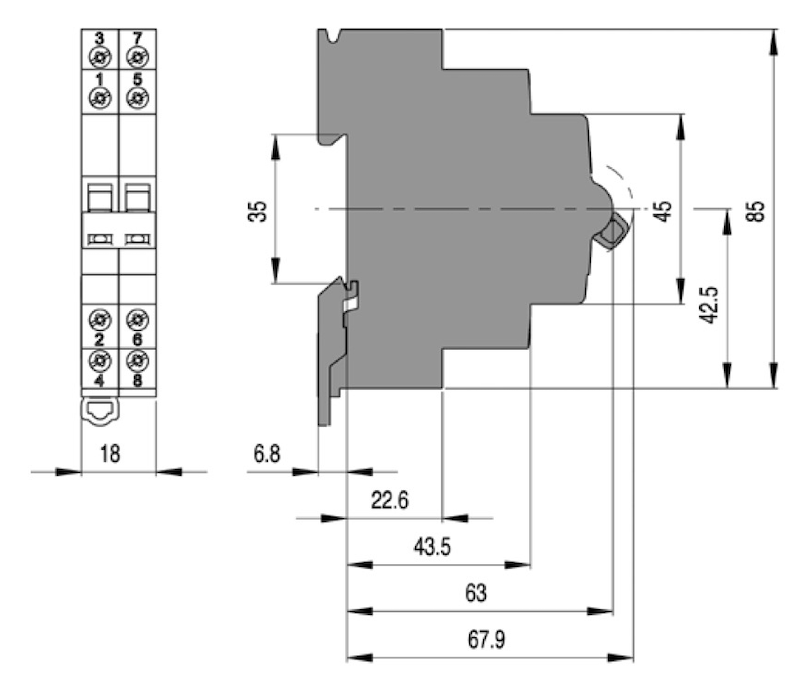

Dimensioned drawing

Click here for download: Declaration DOC CE (Declaration of conformity CE)

Declaration DOC CE (Declaration of conformity CE)

Click here for download: Deeplink REACH

Deeplink REACH

Technical Specifications

Type

Changeover Switch

Rated Current (A)

25 A

Contacts

2CO

Number of modules

1

Rated Voltage AC

250 V

Frequency

50/60 Hz

Power loss

0,8 W

Working temperature

-25/+55 °C

Storage temperature

-40/+70 °C

Protection Degree on terminals

IP20

Standard connection terminals

1 or 2 x 0,75...2,5 mm²

Torque

1,5 Nm

Brand

AEG
