MCXT5
MCCB AEG MCXT5 3P 630A 70KA EL. LSIG
MCXT5H3630LSIG
+
Error loading products: {{ error }}
Downloads and Resources
Download informative and technical materials to learn more about the features of our products.
Compatible products

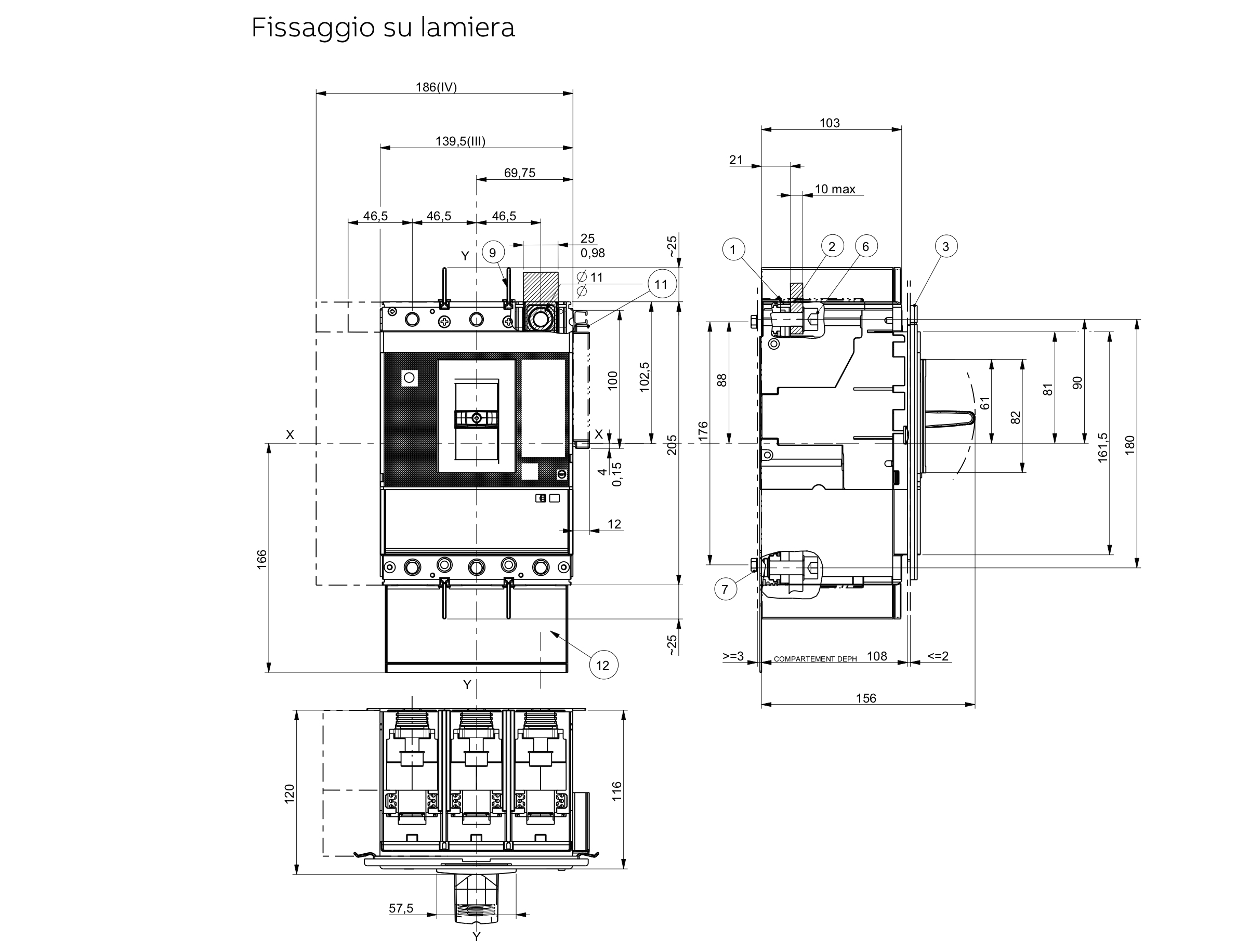

Technical Specifications
Protection
Line Electronic and Earth Fault (LSIG)
Number of Poles
3
Rated Current (A)
630 A
Ultimate breaking capacity Icu at 400/415V AC
70 kA
Ultimate breaking capacity Icu at 500 V AC
50 kA
Ultimate breaking capacity Icu at 690 V AC
40 kA
Service breaking capacity Ics (%Icu)
100%
Rated Operational Voltage Ue (V)
690 AC
Rated insulation voltage Ui (V)
1000
Category of use
A, B (up to 500A)
Suitable for use as a isolator
YES
Thermal setting Ir (A)
--
Magnetic setting Im
--
Overload channel LT
Ir=0,4...1 In
Time band classes LTD
5, 10, 20, 30
Short-circuit channel ST
Ist= Off, 1...10 In
Time setting bands STD (s)
0,05...0,4
Instantaneus short-circuit protection channel I
Off, 1..10 In
Ground fault protection
0,2...1 In
Neutral protection
0 - 50% - 100%
Mechanical life
20.000 operations
Electrical Life at In
5.000 operations
Power loss
135 W
Standard connection terminals
32,5x10 mm²
Torque
36 Nm
Approvals
CE
State
On sale
