Manual changeover switches 2-layers CSHLNS

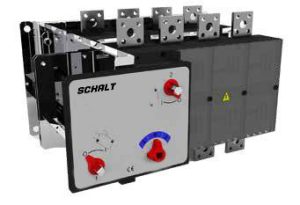

TWO LAYERS MAN. CHANGEOVER SWITCH HLN7S 3P 1600A
CSHLN7S31600
+
Error loading products: {{ error }}
Downloads and Resources
Download informative and technical materials to learn more about the features of our products.
Technical Specifications
Rated Current (A)
1600 A
Number of Poles
3
Rated insulation voltage Ui (V)
1500
Rated impulse Withstand Voltage Uimp (kV)
12
Rated Current in category AC-21A (A) at 400/500/690V
1600/1250/1250
Rated current in category AC-22A (A) at 400/500/690V
-/-/-
Rated current in category AC-23A (A) at 400/500/690V
-/-/-
Rated closing/breaking current at 400V AC23 (A)
--
Short time current Icw x 1s (kA)
50
Short time current Icw x 0,25s (kA)
100
Rated fuse short circuit current (kA)
--
Mechanical life
4000 operations
Electrical Life at In
500 operations
Power Loss for each pole (W)
38,3
Standard connection terminals
-- mm²
Standard
EN 60947-1; EN 60947-3
Approvals
CE
State
On sale
Brand
SCHALT
