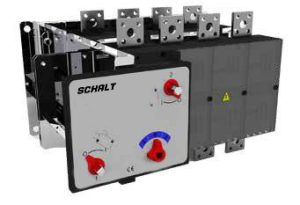

TWO LAYERS MANUAL CHANGEOVER SWITCH HLN6S 4P 1250A

CSHLN6S41250

+

Downloads and Resources

Download informative and technical materials to learn more about the features of our products.

Click here for download: Product data sheet

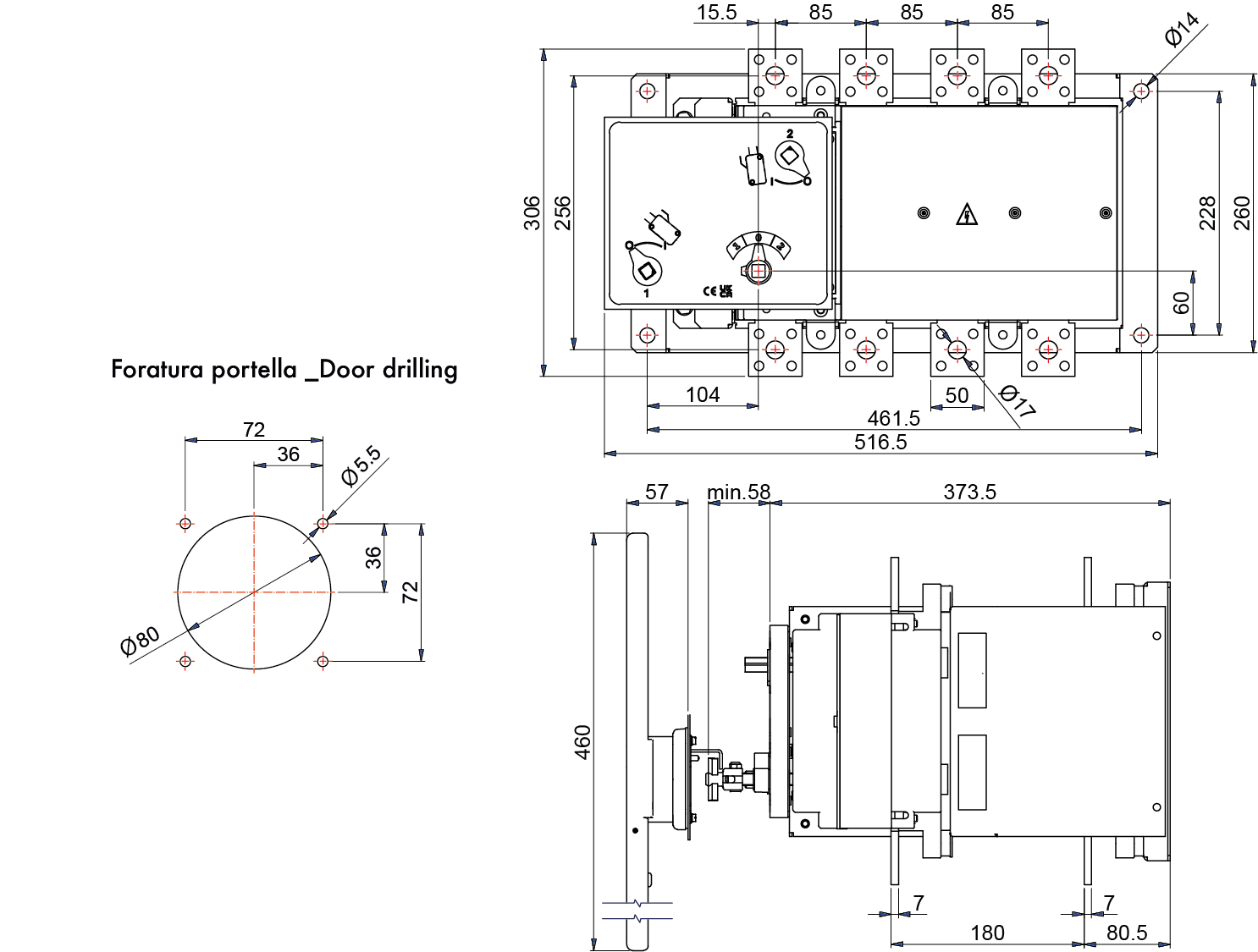

Click here for download: Dimensioned drawing

Technical Specifications

Rated Current (A)

1250 A

Number of Poles

3+N

Rated insulation voltage Ui (V)

1500

Rated impulse Withstand Voltage Uimp (kV)

12

Rated Current in category AC-21A (A) at 400/500/690V

1250/1250/1250

Rated current in category AC-22A (A) at 400/500/690V

1250/1250/1250

Rated current in category AC-23A (A) at 400/500/690V

1250/800/400

Rated closing/breaking current at 400V AC23 (A)

12500/10000

Short time current Icw x 1s (kA)

35

Short time current Icw x 0,25s (kA)

70

Rated fuse short circuit current (kA)

100 (fuse 1250A)

Mechanical life

7000 operations

Electrical Life at In

1.000 operations

Power Loss for each pole (W)

42,7

Standard connection terminals

-- mm²

Standard

EN 60947-1; EN 60947-3

Approvals

CE

State

On sale

Brand

SCHALT
