Manual changeover switches 2-layers CSHLNS

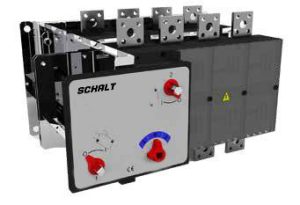

TWO LAYERS MANUAL CHANGEOVER SWITCH HLN6S 3P 1250A
CSHLN6S31250
+
Error loading products: {{ error }}
Downloads and Resources
Download informative and technical materials to learn more about the features of our products.
Technical Specifications
Rated Current (A)
1250 A
Number of Poles
3
Rated insulation voltage Ui (V)
1500
Rated impulse Withstand Voltage Uimp (kV)
12
Rated Current in category AC-21A (A) at 400/500/690V
1250/1250/1250
Rated current in category AC-22A (A) at 400/500/690V
1250/1250/1250
Rated current in category AC-23A (A) at 400/500/690V
1250/800/400
Rated closing/breaking current at 400V AC23 (A)
12500/10000
Short time current Icw x 1s (kA)
35
Short time current Icw x 0,25s (kA)
70
Rated fuse short circuit current (kA)
100 (fuse 1250A)
Mechanical life
7000 operations
Electrical Life at In
1.000 operations
Power Loss for each pole (W)
42,7
Standard connection terminals
-- mm²
Standard
EN 60947-1; EN 60947-3
Approvals
CE
State
On sale
Brand
SCHALT
