Manual changeover switches 2-layers CSHLNS

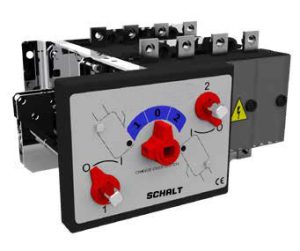

TWO LAYERS MANUAL CHANGEOVER SWITCH HLN3S 3P 160A
CSHLN3S3160
+
Error loading products: {{ error }}
Downloads and Resources
Download informative and technical materials to learn more about the features of our products.
Technical Specifications
Rated Current (A)
160 A
Number of Poles
3
Rated insulation voltage Ui (V)
1500
Rated impulse Withstand Voltage Uimp (kV)
12
Rated Current in category AC-21A (A) at 400/500/690V
160/160/160
Rated current in category AC-22A (A) at 400/500/690V
160/160/160
Rated current in category AC-23A (A) at 400/500/690V
160/125/100
Rated closing/breaking current at 400V AC23 (A)
1600/1280
Short time current Icw x 1s (kA)
8
Short time current Icw x 0,25s (kA)
16
Rated fuse short circuit current (kA)
50 (fuse 160A)
Mechanical life
10000 operations CO
Electrical Life at In
2000 operations
Power Loss for each pole (W)
1,6
Standard connection terminals
70 mm²
Standard
EN 60947-1; EN 60947-3
Approvals
CE
State
On sale
Brand
SCHALT
