Interface swithboards OPEN CEI 0-16

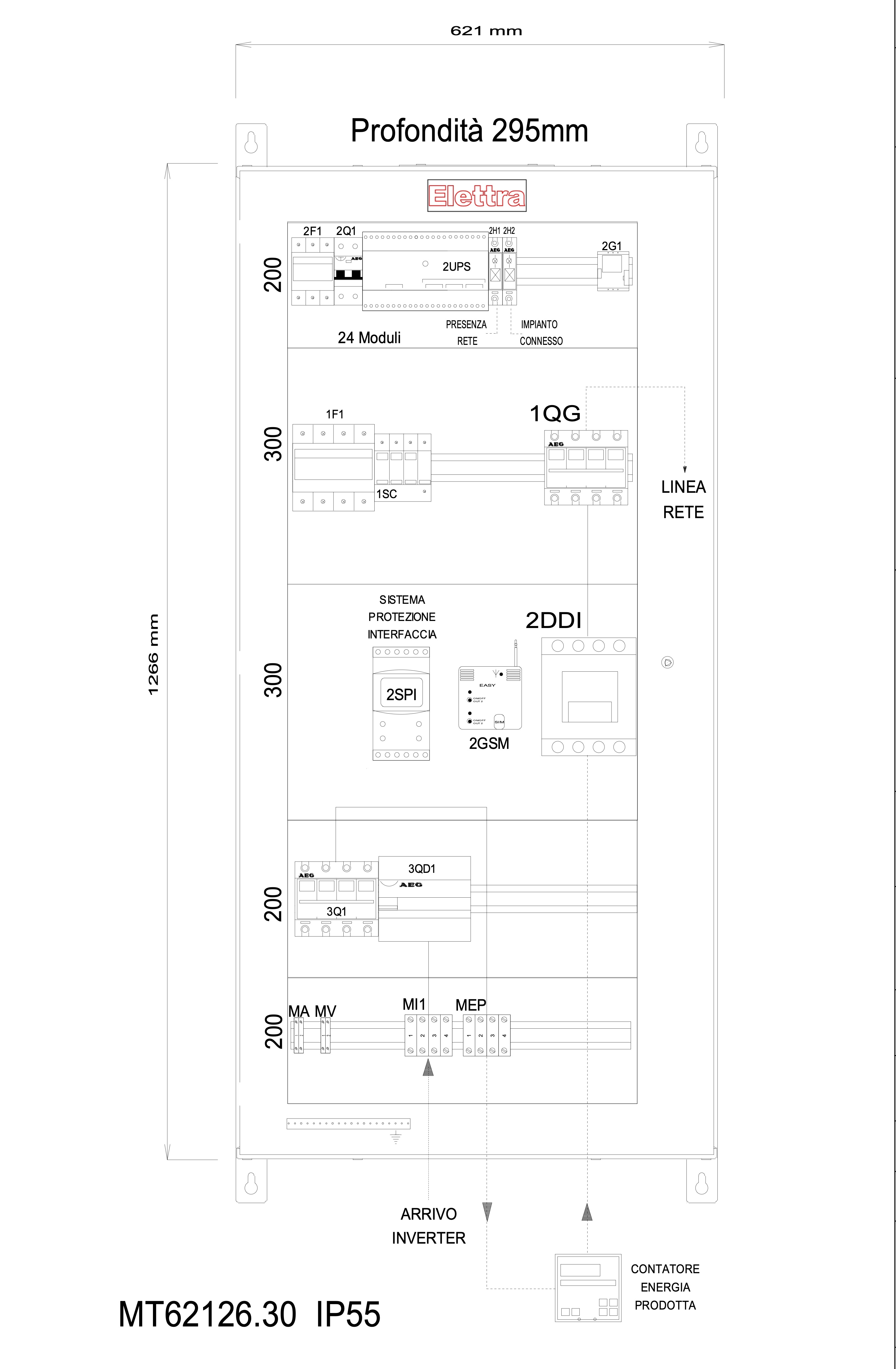

QUADRO INTERFACCIA CEI 0-16 3F+N 50kW 1 INVERTER
PVQI50-1R016
+
Error loading products: {{ error }}
Downloads and Resources
Download informative and technical materials to learn more about the features of our products.
Technical Specifications
Rated Voltage AC
400 V
Rated Power
50 kW
Protection main switch
E880504C100
Short circuit capacity EN60947-2 Icu at 400V
50 kA
Number of poles main switch
4
Main switch rated current
100 A
Type of over voltage protection device
Type 2
Mounting method
Surface mounted
Housing material
Steel
Protection degree
IP55
Width
620 mm
Depth
295 mm
Colour
Grey
RAL-number
7035
Net Weight
60 kg
Standard
CEI0-16, EN61439-1, EN61439-2
Brand
ELETTRA
