Industrial Time Relays – Tele Haase

RELE' DI SCAMBIO PRECEDENZA

G2ASMA20

+

Downloads and Resources

Download informative and technical materials to learn more about the features of our products.

Click here for download: Product data sheet

Click here for download: Technical manual

Click here for download: Declaration RoHS

Click here for download: Deeplink REACH

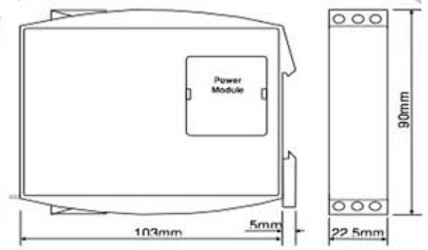

Click here for download: Dimensioned drawing

Technical Specifications

Type

Pump alternator

Control voltage (V)

24...400Vac (separate supply module)

Adjustment

2s...5min

Frequency

50/60 Hz

Rated insulation voltage Ui (V)

4000

Power loss

1,5 W

Contacts

2CO

Number of modules

--

Electrical Life at In

200.000 operations

Protection degree

IP40 HOUSING (IP20 terminals)

Standard connection terminals

1 or 2 x 0,5...2,5 mm²

Torque

1 Nm

Operation temperature (°C)

-25/+55

Storage temperature

-25/+70 °C

Standard

EN 61812.1

Approvals

CE

State

On sale
