Industrial switch disconnectors HLNS series

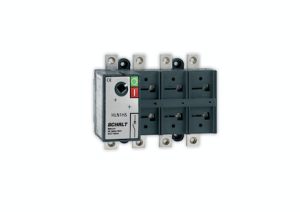

SEZIONATORE SCHALT HLN1HS 3P 63A
HLN1HS363
+
Error loading products: {{ error }}
Downloads and Resources
Download informative and technical materials to learn more about the features of our products.
Technical Specifications
Rated Current (A)
63 A
Number of Poles
3
Rated Operational Voltage Ue (V)
690 AC
Rated insulation voltage Ui (V)
1000
Rated impulse Withstand Voltage Uimp (kV)
12
Rated Current in category AC-21A (A) at 400/500/690V
63/63/63
Rated current in category AC-22A (A) at 400/500/690V
63/63/63
Rated current in category AC-23A (A) at 400/500/690V
63/45/35
Rated power in AC23 (kW) at 415/500/690V
33
Rated closing/breaking current at 400V AC23 (A)
630/504
Short time current Icw x 1s (kA)
5
Short time current Icw x 0,25s (kA)
10
Rated fuse short circuit current (kA)
50 (fuse 63A)
Short circuit making current capacity Icm
7,5 kA
Power loss
1,2 W
Mechanical life
12.000 operations
Electrical Life at In
3000 operations CO
Standard connection terminals
16 mm²

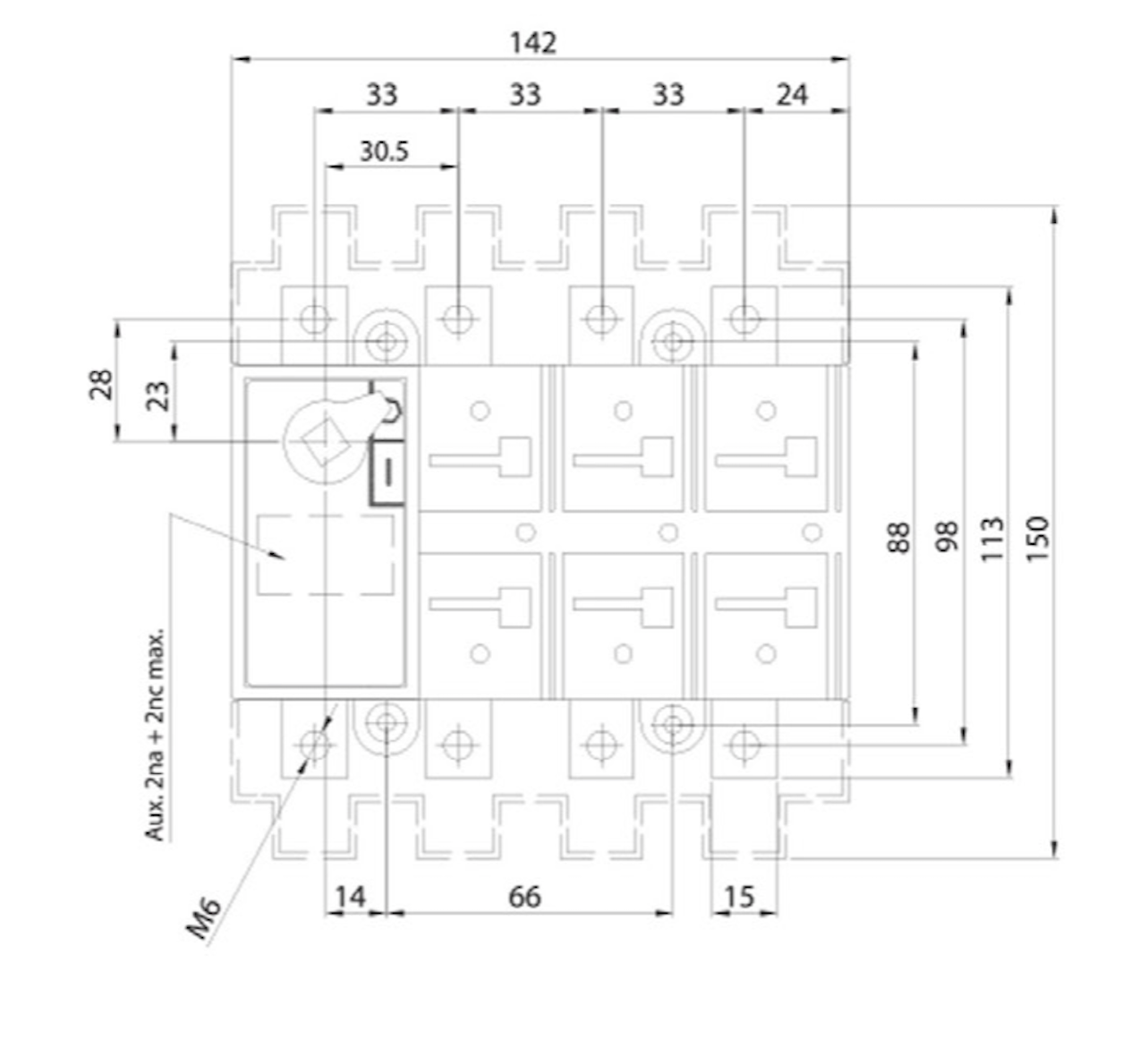

Width
142 mm
Height
113 mm
Depth
75 mm
Standard
EN 60947-1; EN 60947-3
Approvals
CE
State
On sale
