Grid and system protection

RELE' PROTEZIONE INTERFACCIA CEI 0-16

BFI016

+

Downloads and Resources

Download informative and technical materials to learn more about the features of our products.

Click here for download: Product data sheet

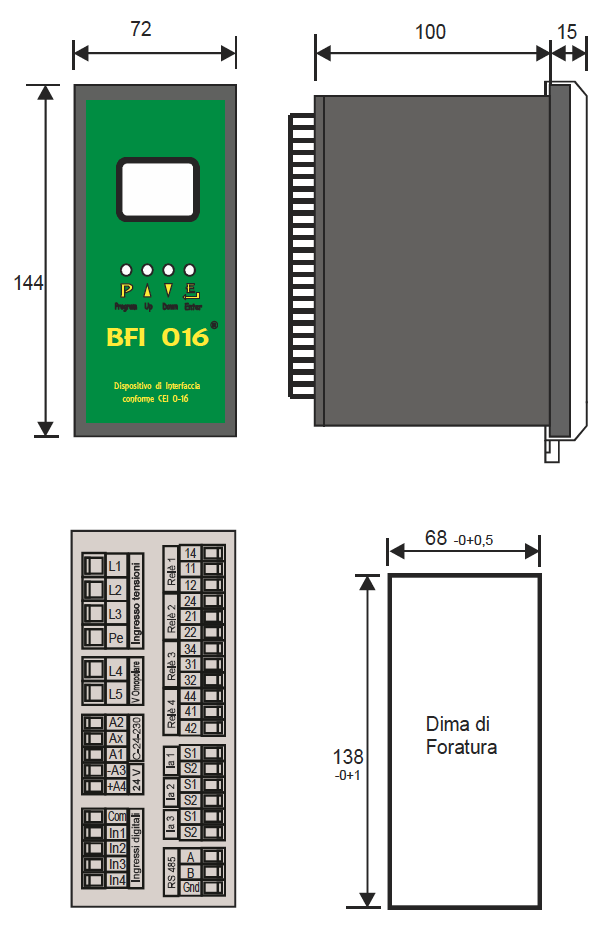

Click here for download: Dimensioned drawing

Technical Specifications

Auxiliary Voltage (V)

230 AC

Power loss

1 W

Rated insulation voltage Ui (V)

250

Output contacts

1CO switchable

Technical Feautures

3phase measuring

Working temperature

-20/+60 °C

Storage temperature

-30/+70 °C

Maximum Terminal Capacity

2,5 mm²

Torque

0,6 Nm

Number of modules

4

Standard

CEI 0-16

State

On sale
