Grid and system protection

PROTECTION RELAY CEI 0-21 24VDC 110/230VAC

NA003

+

Downloads and Resources

Download informative and technical materials to learn more about the features of our products.

Click here for download: Product data sheet

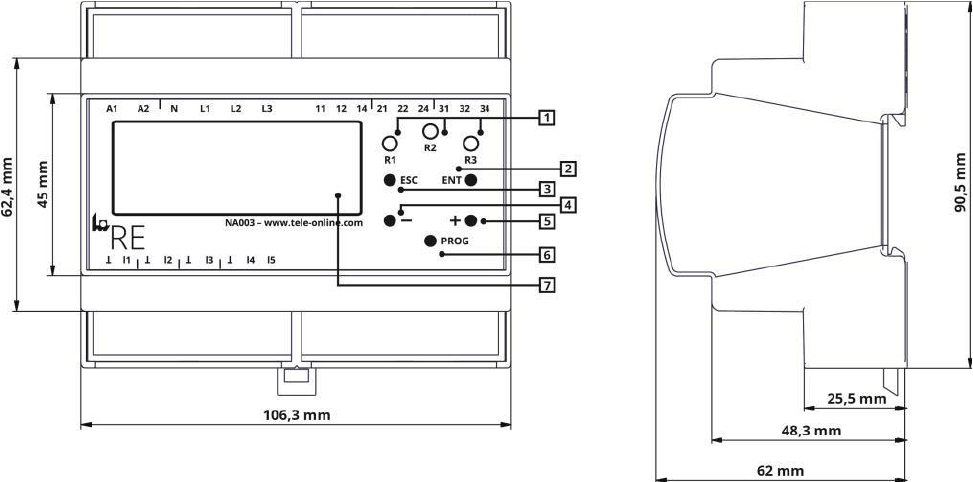

Click here for download: Dimensioned drawing

Click here for download: Declaration DOC CE (Declaration of conformity CE)

Technical Specifications

Auxiliary Voltage (V)

230 AC

Power loss

1,24 W

Rated insulation voltage Ui (V)

400

Output contacts

3CO

Technical Feautures

3phase, 3ph+n or 1phase measuring

Working temperature

-25/+55 °C

Storage temperature

-40/+70 °C

Maximum Terminal Capacity

2,5 mm²

Torque

0,6 Nm

Frequency

40...60 Hz

Number of modules

6

Standard

CEI 0-21

State

On sale
