Flush distribution enclosures with metallic plain door IP40
CENTRALINO INCASSO MURO IP40 P.CIECA METALLO 70M
SGS70IM
CENTRALINO DA INCASSO IP40 CON PORTA CIECA IN METALLO, ADATTO PER INSTALLAZIONE SU PARETI A MURO E PARETI IN CARTONGESSO, CAPACITA' DA 14 MODULI FINO A 70 MODULI
+
Error loading products: {{ error }}
Downloads and Resources
Download informative and technical materials to learn more about the features of our products.
Technical Specifications
Modules Capacity
70
Number of rows
5
Protection degree
IP40
Rated Voltage AC
Up to 400 V
Mounting
a muro
Colour
White RAL 9003
Impact resistance
IK08
Temperature resistance
650° C glow wire test
placing
To wall

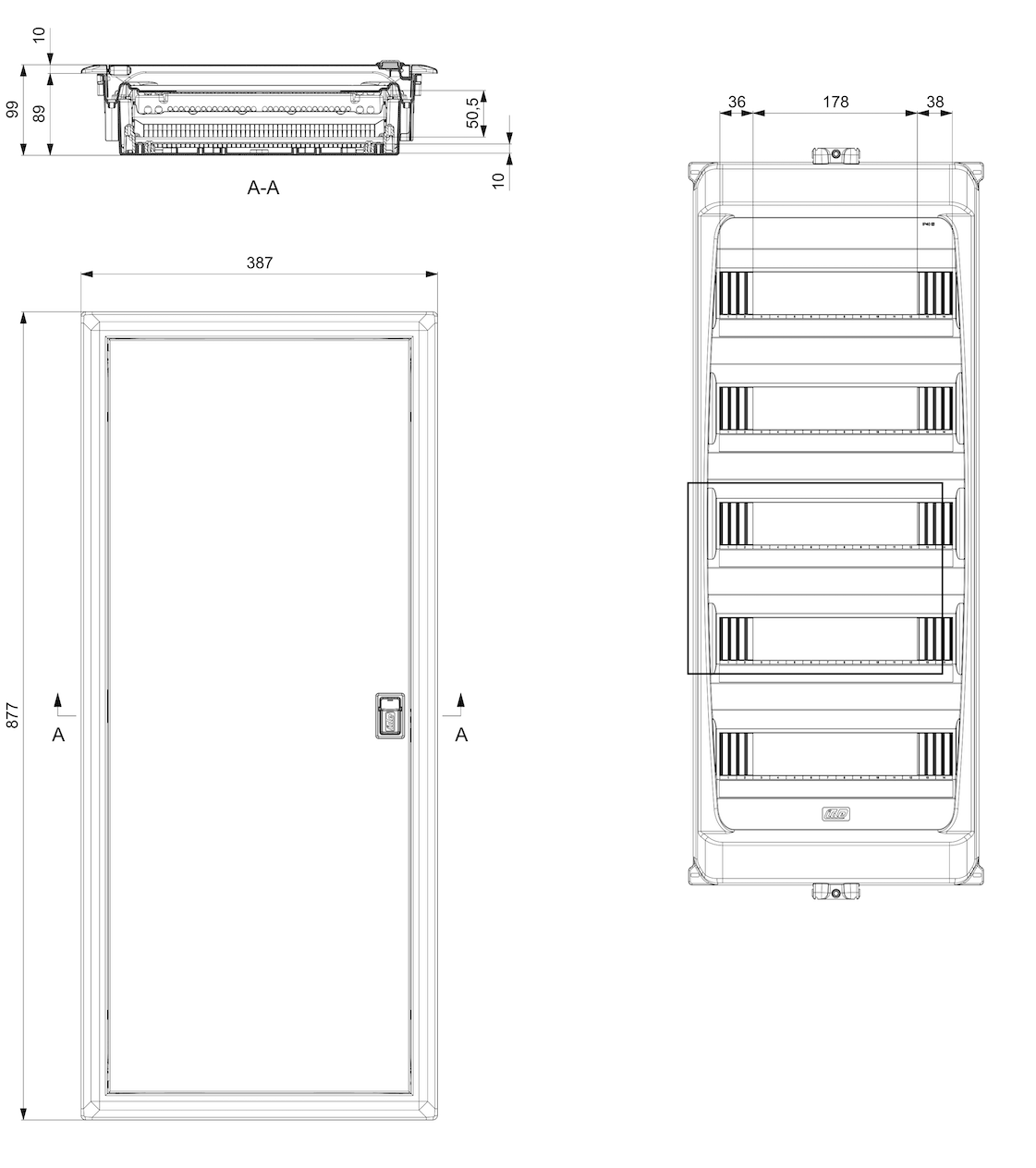

Flush Size (mm W x H x D)
352x842x89
External Size (mm W x H x D)
387x877x10
Maximum heating dissipation (W)
64
Standard
EN62208; EN60670-1
Rated Width
352 mm
Rated Height
842 mm
Rated Depth
89 mm
State
On sale
