Flush distribution enclosures with metallic plain door IP40
CENTRALINO INCASSO MURO IP40 P.CIECA METALLO 56M
SGS56IM
+
Error loading products: {{ error }}
Downloads and Resources
Download informative and technical materials to learn more about the features of our products.
Technical Specifications
Modules Capacity
56
Number of rows
4
Protection degree
IP40
Rated Voltage AC
Up to 400 V
Mounting
a muro
Colour
White RAL 9003
Impact resistance
IK08
Temperature resistance
650° C glow wire test
placing
To wall

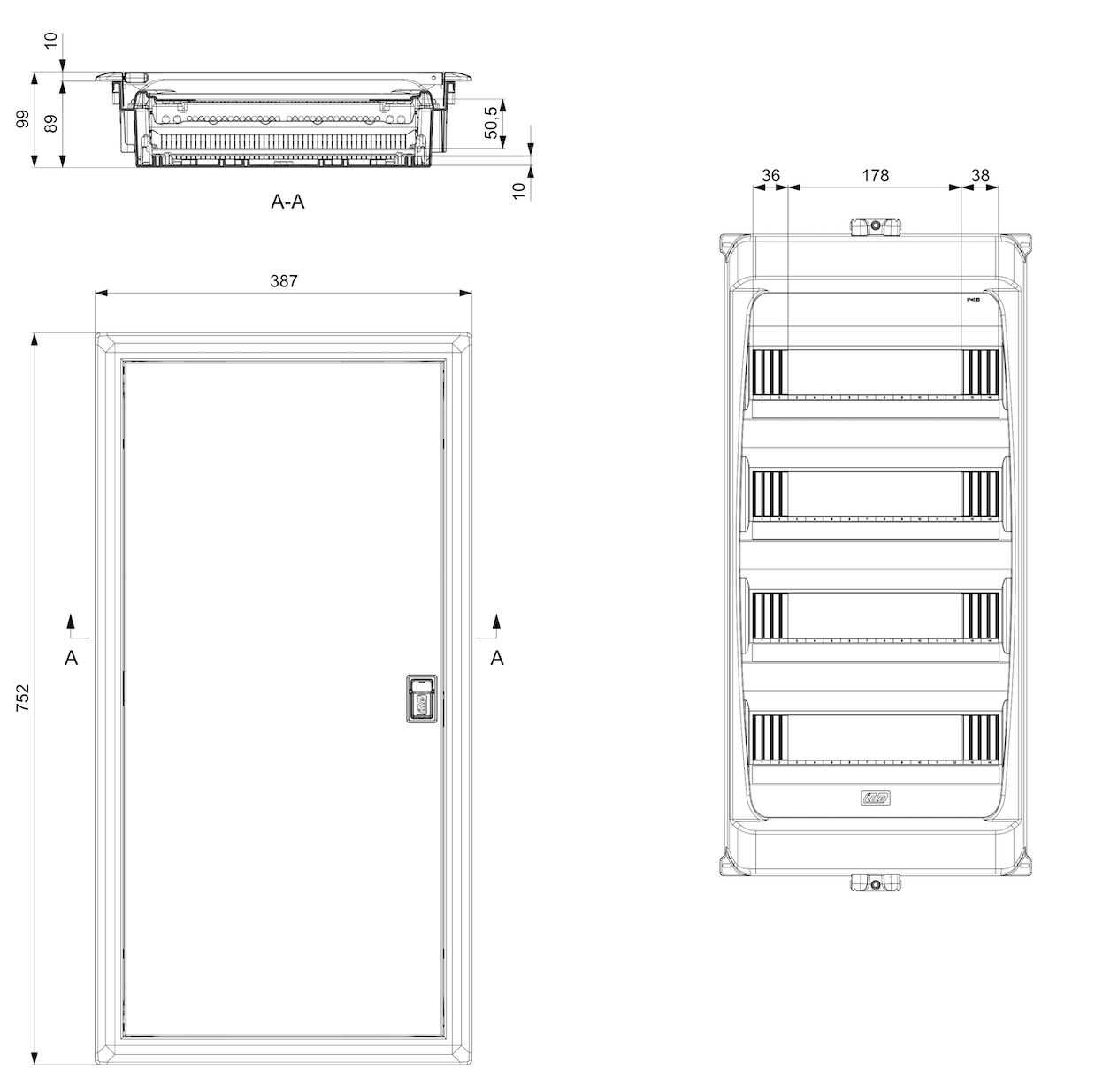

Flush Size (mm W x H x D)
352x717x89
External Size (mm W x H x D)
387x752x10
Maximum heating dissipation (W)
55
Standard
EN62208; EN60670-1
Rated Width
352 mm
Rated Height
717 mm
Rated Depth
89 mm
State
On sale
