Energy kWh-Meters

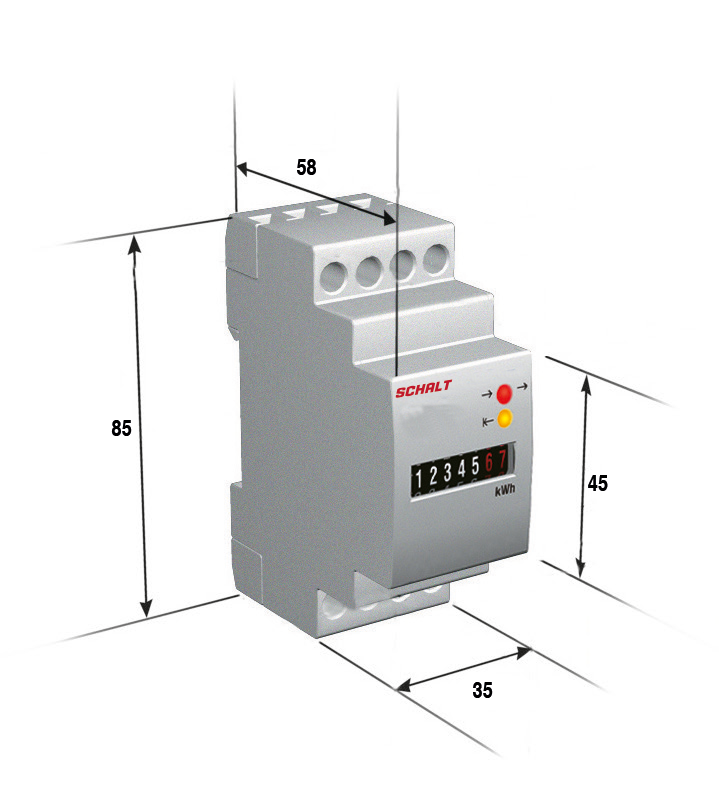

PULSE ENERGY METER 100A MONO 230V IMP. 2 mod.
E9W1-100I
CONTATORE DI ENERGIA MONOFASE CON INSERZIONE DIRETTA, TENSIONE NOMINALE DI IMPIEGO 230VAC, CORRENTE MASSIMA 63A, FREQUENZA 50-60Hz, CONSUMO 3VA, CLASSE DI PRECISIONE A, 2 MODULI, GRADO DI PROTEZIONE IP51
+
Error loading products: {{ error }}
Downloads and Resources
Download informative and technical materials to learn more about the features of our products.
Technical Specifications
Type
single phase
Insertion
SERIE
Meausre
kWh
Rated Operational Voltage Ue (V)
230 AC
Min-Max operating voltage AC
- V
Number of modules
2
Max Current (A)
63
Frequency
50/60 Hz
Consumption
3VA
Technical Feautures
1imp-100W
Working temperature
-5/+55 °C
Storage temperature
-25/+70 °C
Class
A
Protection degree
IP51
Standard
EN 50470-1/3
Approvals
CE
State
On sale
Brand
SCHALT
Megiston
