Energy kWh-Meters
MID ENERGY METER 80A MONO 230V IMP.
E9MID2-80
CONTATORE DI ENERGIA MID MONOFASE CON INSERZIONE DIRETTA, TENSIONE NOMINALE DI IMPIEGO 230VAC, CORRENTE MASSIMA 80A, FREQUENZA 50-60Hz, CONSUMO 7,5VA max, CLASSE DI PRECISIONE B, 2 MODULI, GRADO DI PROTEZIONE IP51 FRONTALMENTE E IP20 SUI MORSETTI
+
Error loading products: {{ error }}
Downloads and Resources
Download informative and technical materials to learn more about the features of our products.
Technical Specifications
Type
single phase
Insertion
SERIE
Meausre
kW, KVAr, kVA, kWh, kVArh, kVAh, Multitariff
Rated Operational Voltage Ue (V)
230 AC
Min-Max operating voltage AC
- V

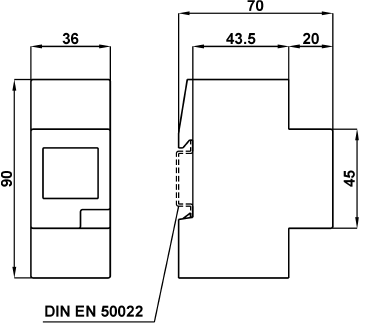

Number of modules
2
Max Current (A)
80
Frequency
50/60 Hz
Consumption
7,5VA max
Technical Feautures
MID Energy Meter
Working temperature
-25/+55 °C
Storage temperature
-25/+70 °C
Class
B
Protection degree
IP51 frontal part, IP20 terminals
Standard
EN 50470-1/3
Approvals
CE
State
On sale
Brand
SCHALT
Megiston
