Energy kWh-Meters

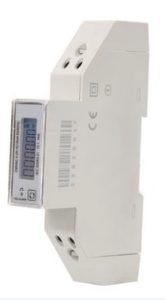

CONTATORE MONOFASE 100A IMPULSI/MODBUS RS485
EXW1RS
+
Error loading products: {{ error }}
Downloads and Resources
Download informative and technical materials to learn more about the features of our products.
Technical Specifications
Type
single phase
Insertion
SERIE
Meausre
V, A, kW, KVAr, kVA, kWh, kVArh, Pf, Hz, Multitariff, Max Demand
Rated Operational Voltage Ue (V)
230 AC
Min-Max operating voltage AC
176...275 V
Number of modules
1
Max Current (A)
100
Frequency
45/60 Hz
Consumption
10VA
Technical Feautures
ModBus RS485
Working temperature
-25/+55 °C
Storage temperature
-40/+80 °C
Class
1
Protection degree
IP51
Standard
IEC61557-12
Approvals
CE
State
On sale
Brand
SCHALT
Megiston
