Energy kWh-Meters
MID ENERGY METER DIR.80A 3F+N RS485
E9MID4-80
CONTATORE DI ENERGIA CON USCITA RS485, 3L+N CON INSERZIONE DIRETTA, TENSIONE NOMINALE DI IMPIEGO 400VAC, CORRENTE MASSIMA 80A, FREQUENZA 50-60Hz, CONSUMO 3,5VA max, CLASSE DI PRECISIONE B, 4 MODULI, GRADO DI PROTEZIONE IP51 FRONTALMENTE E IP20 SUI MORSETTI
+
Error loading products: {{ error }}
Downloads and Resources
Download informative and technical materials to learn more about the features of our products.
Technical Specifications
Type
3L+N
Insertion
SERIE
Meausre
kW, KVAr, kVA, kWh, kVArh, kVAh, Multitariff
Rated Operational Voltage Ue (V)
400 AC
Min-Max operating voltage AC
- V

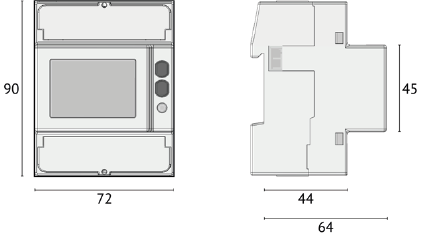

Number of modules
4
Max Current (A)
80
Frequency
50/60 Hz
Consumption
3,5VA max
Technical Feautures
MID Energy Meter with RS485 modbus
Working temperature
-25/+55 °C
Storage temperature
-25/+70 °C
Class
B
Protection degree
IP51 frontal part, IP20 terminals
Standard
EN 50470-1/3
Approvals
CE
State
On sale
Brand
SCHALT
Megiston
