INTERRUTTORE AEG SERIE E880+ 4P C 100A 50kA

E880504C100

INTERRUTTORE AUTOMATICO AEG 4P C 100A 50kA

+

INTERRUTTORE AEG SERIE E880+ 4P C 100A 50kA

Downloads and Resources

Download informative and technical materials to learn more about the features of our products.

Click here for download: Product data sheet

Product data sheet

Click here for download: Dimensioned drawing

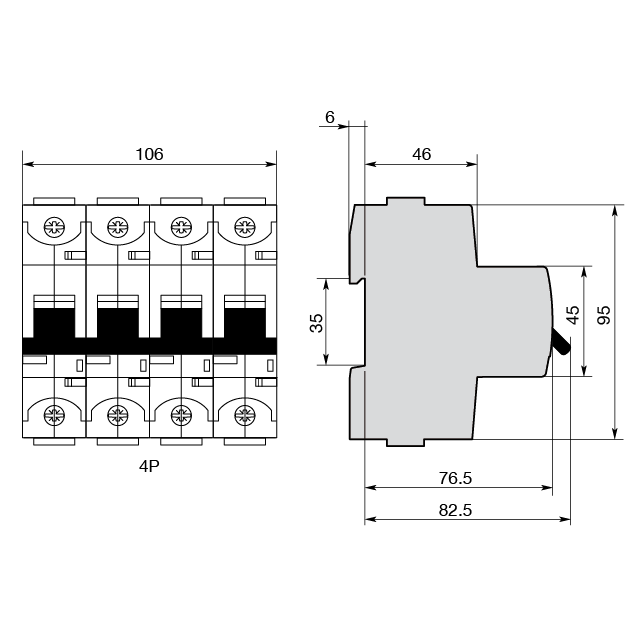

Dimensioned drawing

Click here for download: Declaration DOC CE (Declaration of conformity CE)

Declaration DOC CE (Declaration of conformity CE)

Click here for download: Others

Others

Technical Specifications

Rated Current (A)

100 A

Number of Poles

4

Characteristic

C (5 - 10 In)

Short circuit capacity EN60947-2 at 400V

50 kA

Short circuit capacity according to EN60898-1 Icn

15 at 230/400V kA

Standard

EN60947-2, EN60898

Number of modules

6

Power loss

24 W

Rated Voltage AC

240/415 V

Min-Max operating voltage AC

12/440 V

Frequency

50/60 Hz

Rated Voltage DC

500 V

Max operating voltage DC (V)

500

Rated insulation voltage Ui (V)

690

Standard connection terminals

70 mm²

Isolator application according to EN 60947-2

YES

Torque

3,5 Nm

Working temperature

-25/+60 °C

Storage temperature

-40/+70 °C

Calibration Temperature (°C)

30

Mounting

any

State

On sale

Brand

AEG
