Elfa NEXT DMA63NP
RCBO AEG 3P+N B 25A 6kA 300mA A
DMA63NPB25/300
Interruttore automatico differenziale magnetotermico serie DMA63NP; 3P+N; corrente nominale 10...32A; potere di cortocircuito nominale Icn secondo EN 61009-1 6000A; capacità di rottura secondo EN 60947-2 a 230VAC 10kA; tensione nominale Un 415VAC; tensione d'impiego min-max 300-440VAC; classe A; soglia d'intervento 300mA; curva caratteristica B
+
Error loading products: {{ error }}
Downloads and Resources
Download informative and technical materials to learn more about the features of our products.
Technical Specifications
Rated Current (A)
25 A
Characteristic
B (3 - 5 In)
Number of Poles
3+N
Residual current
300 mA
Fault Current Type
A
Number of modules
4
Rated Voltage AC
415 V
Operating Voltage of circuit TEST (V) AC
300-440
Rated insulation voltage Ui (V)
500
Rated impulse Withstand Voltage Uimp (kV)
4
Rated short circuit breaking capacity Icn acc. to EN61009
6 kA
Short circuit capacity EN60947-2 at 400V
10 kA
Residual making and breaking capacity IDm (A)
4500
Frequency
50/60 Hz
Power loss
10,3 W
Working temperature
-25/+55 °C
Storage temperature
-40/+70 °C
Calibration Temperature (°C)
30
Protection degree
IP40 HOUSING (IP20 terminals)
Standard connection terminals
25 top bottom mm²
Torque
2,8 Nm
Mechanical life
20000 operations CO
Electrical Life at In
10000 operations CO

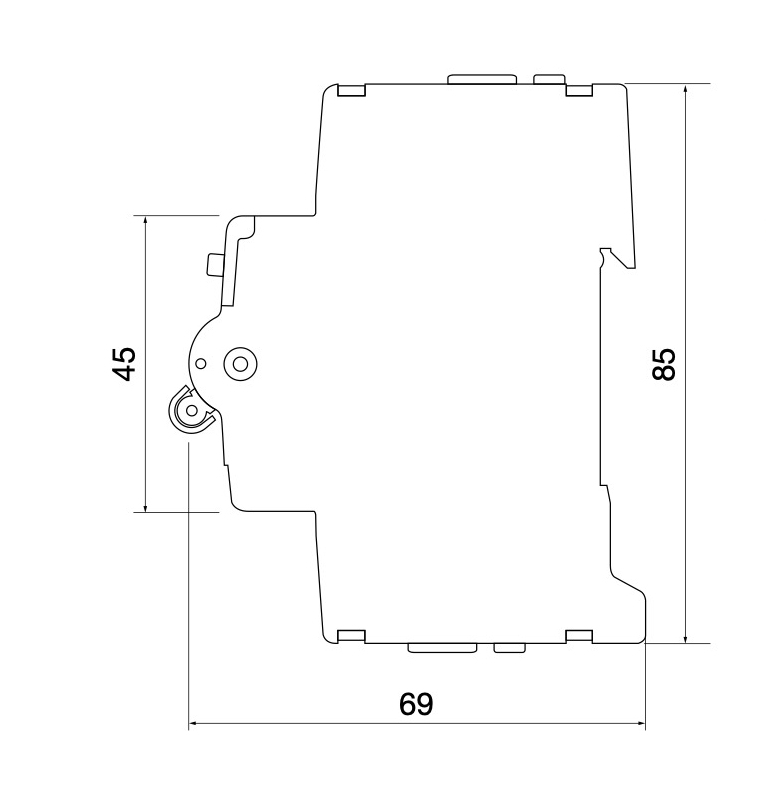

Width
70,4 mm
Height
85 mm
Depth
69 mm
Standard
EN 61009
Approvals
CE
State
On sale
Brand
AEG
