Elfa NEXT EXI, FN

RCCB AEG FN 4P 80A 300mA AC 4M

FN480/AC300

INTERRUTTORE DIFFERENZIALE PURO AEG SERIE ELFANEXT, MODELLO FN 80-100 2 POLI, 4 POLI, TENSIONE NOMINALE 230/240VAC, CORRENTE NOMINALE DA 80A A 100A, TENSIONE PER CIRCUITO DI TEST 110/253V (170/253V PER 30mA), TENSIONE DI ISOLAMENTO 440VAC, CLASSE AC/A/A-S/A-SI, SOGLIA D'INTERVENTO 30/100/300/500/1000mA, PROTEZIONE CONTRO GLI SCATTI INTEMPESTIVI 3000A, 5000A PER LA CLASSE A-SI, FREQUENZA 50/60HZ, TEMPERATURA DI FUNZIONAMENTO -25/+55°C, TEMPERATURA DI STOCCAGGIO -40/+70°C, GRADO DI PROTEZIONE IP40 PER APPARECCHIO E IP20 PER I TERMINALI, VITA MECCANICA 20.000 MANOVRE, VITA ELETTRICA 10.000 MANOVRE, ATTACCHI CON TERMINALE A GABBIA SINGOLA, CAPACITA' DEI TERMINALI 1/35MM2 FLESSIBILE/RIGIDO, COPPIA DI SERRAGGIO 2,8NM (4,5NM MASSIMO), COLORE RAL 7035, SEGNALAZIONE FRONTALE DI STATO E SCATTATO TRAMITE APPOSITE FINESTRELLE MECCANICHE, POSIZIONE DI MONTAGGIO QUALSIASI

+

Downloads and Resources

Download informative and technical materials to learn more about the features of our products.

Click here for download: Product data sheet

Click here for download: Others

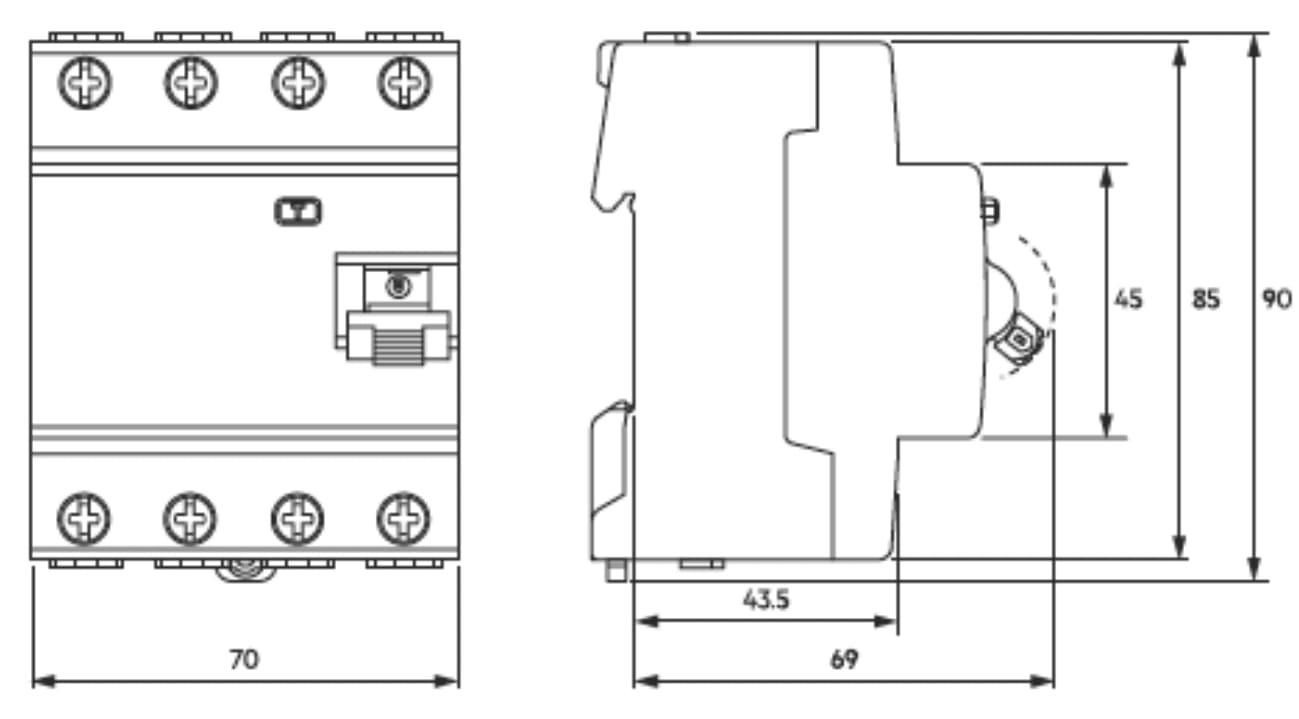

Click here for download: Dimensioned drawing

Click here for download: Declaration RoHS

Click here for download: Deeplink REACH

Click here for download: Instructions for use

Click here for download: Declaration EPD (Environmental Product Declaration)

Click here for download: Declaration DOC CE (Declaration of conformity CE)

Technical Specifications

Rated Current (A)

80 A

Number of Poles

4

Fault Current Type

AC

Residual current

300 mA

Number of modules

4

Rated Voltage AC

230/400 V

Operating Voltage of circuit TEST (V) AC

230

Rated insulation voltage Ui (V)

500

Power loss

21,2 W

Frequency

50 Hz

Working temperature

-25/+40 °C

Storage temperature

-40/+70 °C

Protection degree

IP40 HOUSING (IP20 terminals)

Electrical Life (total operations) AC1/AC7a

10000

Mechanical life

20.000 operations

Standard connection terminals

1...35mm2 mm²

Torque

2 Nm

Current limitation class

3

Standard

EN 61008

Approvals

CE, VDE, IMQ, KEMA

Colour

Grey RAL 7035

Mounting

any

State

On sale

Brand

AEG
