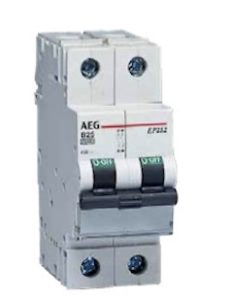

Series E90
Downloads and Resources
Download informative and technical materials to learn more about the features of our products.
Technical Specifications
Rated Current (A)
32 A
Number of Poles
2
Rated Breaking Capacity
6 kA
Characteristic
D (10 - 20 In)
Standard
EN60947-2, EN60898
Number of modules
2
Power loss
6,144 W
Rated Voltage AC
400 V
Min-Max operating voltage AC
12-250/440 V
Frequency
50/60 and DC Hz
Rated Voltage DC
110 (2 Poles in Series) V
Short circuit capacity EN60947-2 Icu at 400V
10 kA
Service breaking capacity Ics (%Icu)
75%
Standard connection terminals
1…35 mm²
Isolator application according to EN 60947-2
YES
Working temperature
-25/+55 °C
Storage temperature
-55/+55 °C
Approvals
VDE
Calibration Temperature (°C)
30
Current limitation class
3
Mounting
any (except upside down)
State
On sale
Brand
AEG
