Distribution enclosures serie GAMMA up to 250A

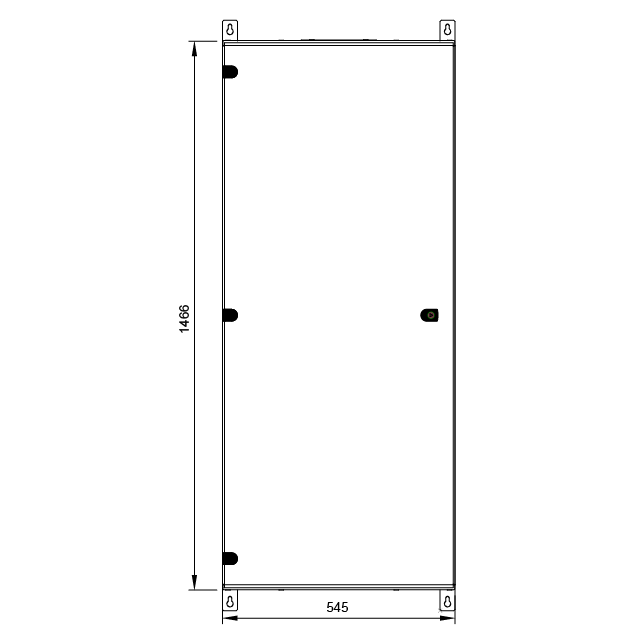

CABINET IP31 NO DOOR W545xH1460xD220

MD54146.22

+

Downloads and Resources

Download informative and technical materials to learn more about the features of our products.

Click here for download: Product data sheet

Technical Specifications

Type

Cabinet IP30 no door

Width

545 mm

Depth

220 mm

Protection degree

IP31

Rated Width

545 mm

Rated Height

1460 mm

Rated Depth

220 mm

Door

no

Rated Current (A)

630 A

Rated Voltage AC

415 V

Rated insulation voltage Ui (V)

690

Separation form

1

Colour

RAL 7035

Body

metal thickness 12/10

placing

wall or floor mounting

State

Phased out

Standard

EN 61439-1
