Current transformers
TA APRIBILE FORO 36mm 400A/333mV

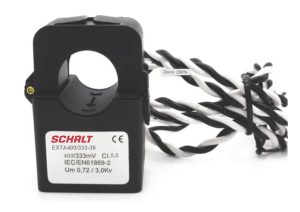

EXTA400/333-36
TRASFORMATORE DI CORRENTE APRIBILE, PRIMARIO 400A, SECONDARIO 333mV, CLASSE DI PRECISIONE 0,5, FORO 36mm, CON 1 METRO DI CAVO INTEGRATO, TENSIONE NOMINALE DI IMPIEGO FINO A 720V, TENSIONE DI ISOLAMENTO 3000V, CORRENTE MASSIMA PRIMARIO 720A, FRQUENZA 50/60HZ, TEMPERATURA DI IMPIEGO -20...+50°C.
+
Error loading products: {{ error }}
Downloads and Resources
Download informative and technical materials to learn more about the features of our products.
Technical Specifications
Type
TA 333mV
Window
36mm
Class
0,5
Rated Operational Voltage Ue (V)
720V
Rated insulation voltage Ui (V)
3000
primary current
400A A
Max Current (A)
720
Working temperature
-20/+50 °C
Technical Feautures
1 meter of integrated cable
Frequency
50/60 Hz
Approvals
CE
Standard
IEC/EN 61869-2
State
On sale
Brand
SCHALT
