Current transformers

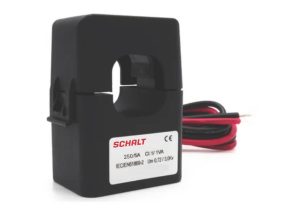

TA APRIBILE FORO 24mm 250A/5A
EXTA250/5-24
TRASFORMATORE DI CORRENTE APRIBILE, PRIMARIO 250A, SECONDARIO 5A, CLASSE DI PRECISIONE 1, FORO 24mm, CON 1 METRO DI CAVO INTEGRATO, TENSIONE NOMINALE DI IMPIEGO FINO A 660V, TENSIONE DI ISOLAMENTO 2000V, FRQUENZA 50/60HZ, TEMPERATURA DI IMPIEGO -15...+45°C.
+
Error loading products: {{ error }}
Downloads and Resources
Download informative and technical materials to learn more about the features of our products.
Technical Specifications
Type
TA 5A
Window
24mm
Class
5VA cl. 1
Rated Operational Voltage Ue (V)
660V
Rated insulation voltage Ui (V)
2000
primary current
250A A
Working temperature
-15°C...+45°C °C
Technical Feautures
1 meter of integrated cable
Frequency
50/60 Hz
Approvals
CE
Standard
IEC/EN 61869-2
State
On sale
Brand
SCHALT
