Current transformers

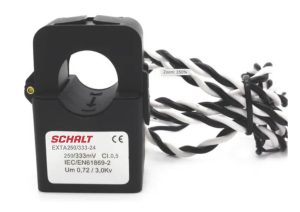

TA APRIBILE FORO 24mm 250A/333mV
EXTA250/333-24
TRASFORMATORE DI CORRENTE APRIBILE, PRIMARIO 250A, SECONDARIO 333mV, CLASSE DI PRECISIONE 0,5, FORO 24mm, CON 1 METRO DI CAVO INTEGRATO, TENSIONE NOMINALE DI IMPIEGO FINO A 720V, TENSIONE DI ISOLAMENTO 3000V, CORRENTE MASSIMA PRIMARIO 480A, FRQUENZA 50/60HZ, TEMPERATURA DI IMPIEGO -20...+50°C.
+
Error loading products: {{ error }}
Downloads and Resources
Download informative and technical materials to learn more about the features of our products.
Technical Specifications
Type
TA 333mV
Window
24mm
Class
0,5
Rated Operational Voltage Ue (V)
720V
Rated insulation voltage Ui (V)
3000
primary current
250A A
Max Current (A)
480
Working temperature
-20/+50 °C
Technical Feautures
1 meter of integrated cable
Frequency
50/60 Hz
Approvals
CE
Standard
IEC/EN 61869-2
State
On sale
Brand
SCHALT
