Current transformers

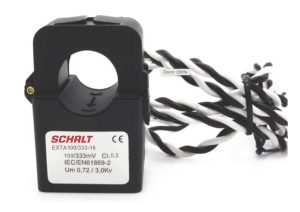

TA APRIBILE FORO 16mm 100A/333mV
EXTA100/333-16
TRASFORMATORE DI CORRENTE APRIBILE, PRIMARIO 100A, SECONDARIO 333mV, CLASSE DI PRECISIONE 0,5, FORO 16mm, CON 1 METRO DI CAVO INTEGRATO, TENSIONE NOMINALE DI IMPIEGO FINO A 720V, TENSIPONE DI ISOLAMENTO 3000V, CORRENTE MASSIMA PRIMARIO 240A, FRQUENZA 50/60HZ, TEMPERATURA DI IMPIEGO -20...+50°C.
+
Error loading products: {{ error }}
Downloads and Resources
Download informative and technical materials to learn more about the features of our products.
Technical Specifications
Type
TA 333mV
Window
16mm
Class
0,5
Rated Operational Voltage Ue (V)
720V
Rated insulation voltage Ui (V)
3000
primary current
100A A
Max Current (A)
240
Working temperature
-20/+50 °C
Technical Feautures
1 meter of integrated cable
Frequency
50/60 Hz
Approvals
CE
Standard
IEC/EN 61869-2
State
On sale
Brand
SCHALT
