Current transformers

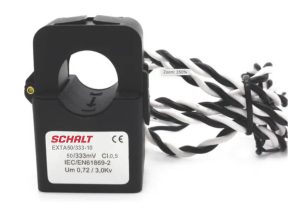

TA APRIBILE FORO 10mm 50A/333mV
EXTA50/333-10
TRASFORMATORE DI CORRENTE APRIBILE, PRIMARIO 50A, SECONDARIO 333mV, CLASSE DI PRECISIONE 0,5, FORO 10mm, CON 1 METRO DI CAVO INTEGRATO, TENSIONE NOMINALE DI IMPIEGO FINO A 720V, TENSIONE DI ISOLAMENTO 3000V, CORRENTE MASSIMA PRIMARIO 80A, FRQUENZA 50/60HZ, TEMPERATURA DI IMPIEGO -20...+50°C.
+
Error loading products: {{ error }}
Downloads and Resources
Download informative and technical materials to learn more about the features of our products.
Technical Specifications
Type
TA 333mV
Window
10mm
Class
0,5
Rated Operational Voltage Ue (V)
720V
Rated insulation voltage Ui (V)
3000
primary current
50A A
Max Current (A)
80
Working temperature
-20/+50 °C
Technical Feautures
1 meter of integrated cable
Frequency
50/60 Hz
Approvals
CE
Standard
IEC/EN 61869-2
State
On sale
Brand
SCHALT
