Current transformers

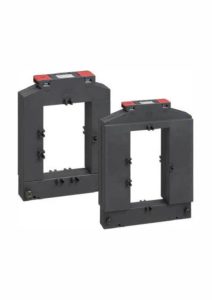

TA APRIBILE FINESTRA 50X80MM 800A/5A
EXTP800/5-58
TRASFORMATORE DI CORRENTE APRIBILE, PRIMARIO 800A, SECONDARIO 5A, CLASSE DI PRECISIONE 1, FINESTRA 50x80mm, TENSIONE NOMINALE DI IMPIEGO FINO A 720V, TENSIONE DI ISOLAMENTO 3000V, FRQUENZA 50/60HZ, TEMPERATURA DI IMPIEGO -5...+40°C.
+
Error loading products: {{ error }}
Downloads and Resources
Download informative and technical materials to learn more about the features of our products.
Technical Specifications
Type
TA 5A
Window
50x80mm
Class
5VA cl. 1
Rated Operational Voltage Ue (V)
720V
Rated insulation voltage Ui (V)
3000
primary current
800A A
Working temperature
-5...+40°C °C
Frequency
50/60 Hz
Approvals
CE
Standard
IEC/EN 61869-2
State
On sale
Brand
SCHALT
Megiston
